SenseCAP T1000-E Dog Tracker Guide: Firmware, Settings & 7-Day Battery Life

The SenseCAP Card Tracker T1000-E can work well as a Meshtastic-based dog tracker, but only if you configure it carefully. This guide shows you how to flash stable firmware, set battery-saving options, and get accurate GPS readings. You’ll also learn what to expect in the field, how to mount the device, and how to avoid common problems.

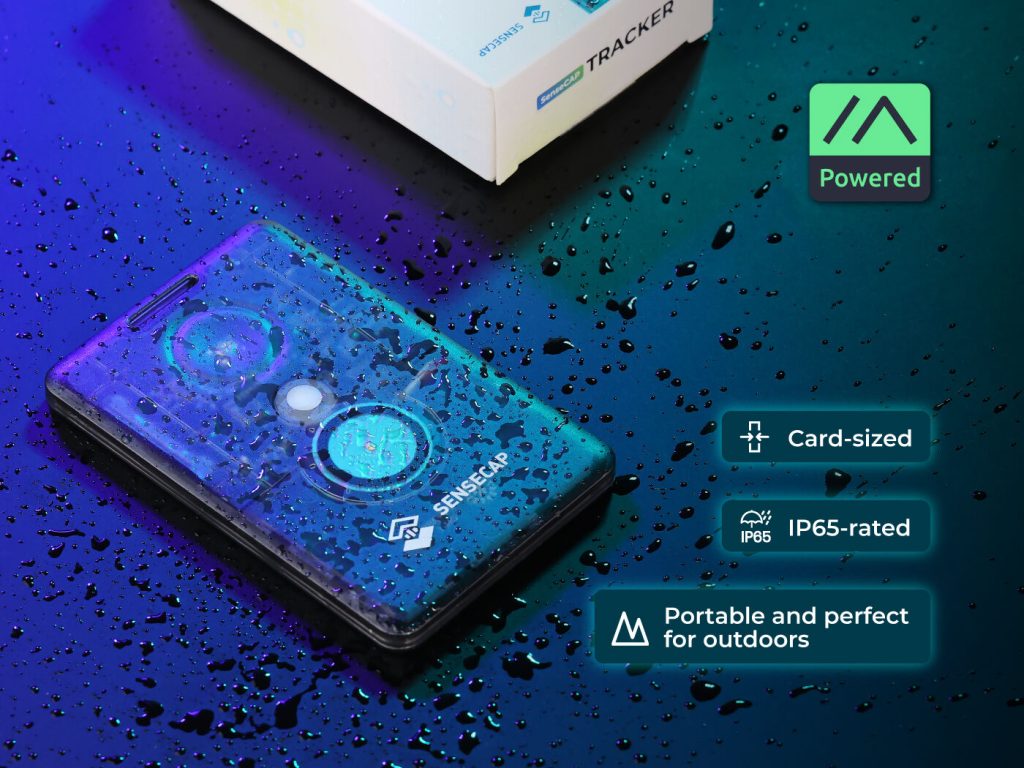

SenseCAP Card Tracker T1000-E for Meshtastic

Table of Contents show

Hardware Overview: What Works and What Doesn’t

The T1000-E includes:

Nordic nRF52840 processor
Semtech LR1110 LoRa radio (not backward compatible with SX127x)
MediaTek AG3335 GPS
700mAh battery
IP65 water resistance

It fits in a wallet but may be too large for dogs under 25 pounds. The LR1110 cannot receive packets from older SX127x radios, so your mesh must use SX126x-based devices for full compatibility.

Firmware Setup and Flashing

Use the Right Version

Stick to firmware version 2.4.2. Versions 2.5.x and newer have GPS bugs that cause 2–3km errors. The stock firmware also shares encryption keys across devices and should be removed.

Flashing Steps

Tools needed:

Magnetic pogo pin cable (included)
Chromium-based browser

Process:

Open flasher.meshtastic.org
Put the device into DFU mode:
- Option A: Click “Enter DFU Mode” in the flasher
- Option B: Hold the button while unplugging and replugging power twice
- You’ll see a solid green LED and a new drive labeled “T1000-E”
Click the trash icon to erase the device.
Download and copy the erase UF2 file to the “T1000-E” drive.
When the drive disappears, copy the 2.4.2 firmware UF2 to the device.
It will reboot automatically.

If bricked:

pip3 install --user adafruit-nrfutil
adafruit-nrfutil --verbose dfu serial \
  --package t1000_e_bootloader-0.9.1-5-g488711a_s140_7.3.0.zip \
  -p [PORT] -b 115200 --singlebank --touch 1200

Meshtastic Configuration for Dog Tracking

Set Device Role

meshtastic --set device.role TRACKER
meshtastic --set device.rebroadcast_mode LOCAL_ONLY
meshtastic --set power.is_power_saving true

The TRACKER role puts the device into deep sleep between GPS broadcasts. The radio powers off during sleep, saving battery.

GPS and Position Reporting

meshtastic --set position.gps_mode ENABLED
meshtastic --set position.gps_update_interval 30
meshtastic --set position.broadcast_smart_minimum_distance 10
meshtastic --set position.broadcast_smart_minimum_interval_secs 900
meshtastic --set position.position_broadcast_smart_enabled true
meshtastic --set position.position_broadcast_secs 900

Smart broadcast boosts reporting when your dog moves and slows it down when stationary. This extends battery life by up to 50%.

Power Management Settings

meshtastic --set power.ls_secs 900
meshtastic --set power.min_wake_secs 30
meshtastic --set power.wait_bluetooth_secs 0

This configuration sleeps the device for 15 minutes at a time, with no Bluetooth waiting period. GPS and LoRa wake the device as needed.

LoRa Radio Settings

meshtastic --set lora.modem_preset LONG_FAST
meshtastic --set lora.tx_power 0
meshtastic --set lora.hop_limit 3

Use LONG_FAST for typical tracking in open terrain. If you only need short-range coverage, switch to MEDIUM_FAST and lower transmit power to 14–17dBm to extend battery life.

Battery Life Expectations

Mode	GPS	Interval	Runtime
Hypermiling	60s	30 min	5–7 days
Balanced (default)	30s	15 min	2–3 days
Active Tracking	Always on	5 min	1–2 days

Cold weather improves radio range but reduces battery capacity. GPS cold starts use the most power. Avoid deep discharges, and consider solar charging via pogo pins for extended trips.

Mounting, Weatherproofing, and Antennas

Built-in antenna works well but loses performance when pressed against the body or collar.
Replace with a 17cm whip or 4dBi gooseneck for up to 30% more range.
Use vertical orientation if possible.

Mount Options

“Physis” 3D-printed mount on Cults3D/Etsy
Custom OpenSCAD collar cases
Make sure the charging pins and power button stay accessible. Add a lanyard or backup tie for safety.

Network Setup

Frequency and Channels

meshtastic --set lora.region US915  # adjust for your region

Use a private channel to avoid broadcasting your dog’s location. If needed, set up a secondary channel for messages or alerts.

Base Station Setup

Use a fixed router node with an outdoor antenna at high elevation
Add repeaters to cover low-signal areas
Sleep behavior limits mesh participation, so plan coverage carefully

The Meshtastic Site Planner helps visualize coverage. Every 1 meter of elevation can add 1km of line-of-sight range.

Monitoring and Alerts

Mobile Apps

The Meshtastic apps (iOS and Android) show real-time location, direction, and message history. There’s no built-in geofence, but movement is easy to track.

Alerts and Buzzers

meshtastic --set external_notification.enabled true
meshtastic --set external_notification.alert_bell true

Set alerts for GPS fixes, messages, or battery level drops.

Custom Monitoring

Telemetry Harbor lets you create dashboards with Grafana
Meshtastic API supports advanced alerts and home automation

Troubleshooting

GPS Problems

Firmware 2.5.x has GPS errors. Downgrade to 2.4.2.
Some versions flood NMEA data and waste power—monitor behavior.

Connectivity

LR1110 can’t receive from SX127x radios. Use SX126x mesh devices.
Bluetooth bugs can crash the app. Re-pair or disable Bluetooth wait time.

Hardware Issues

DOA units are rare but possible. Check charging pin alignment.
Boot loops? Use the DFU recovery steps outlined above.

Testing Timeline

Day 1: Flash firmware 2.4.2. Check GPS accuracy and LoRa join.
Day 2–3: Adjust power settings. Let the device run for 48–72 hours and monitor battery performance.
